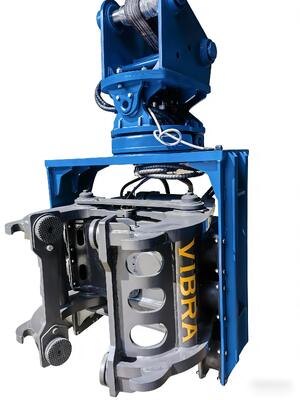

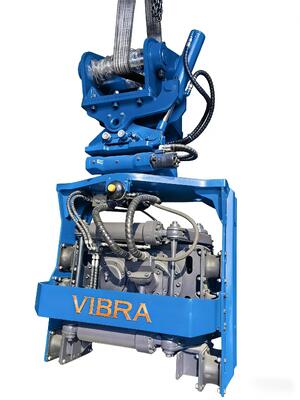

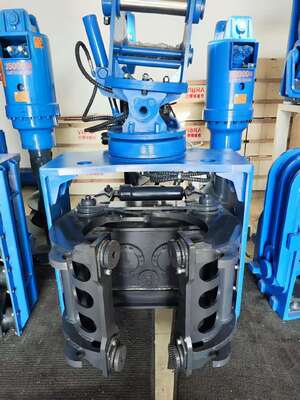

Side Grip Pile Driver – SV200 with Low Headroom Operation Capability & Quick Tool Change System – Manufacturers China

With a compact height of just 2150 mm and a side‑grip design that eliminates the need for an overhead leader, the SV200 offers true low headroom operation capability. This low headroom operation capability is manufactured by reliable Manufacturers China, enabling driving and extraction under bridges, inside factory extensions, along railway underpasses, and in basement retrofits. Even with only 3.5 meters of vertical clearance, the SV200 can position piles vertically using its 360° rotation and ±30° side tilt. For urban projects in India, tight street canyons in Southeast Asia, or low warehouse roofs in Russia, this capability is a game‑changer.

The SV200 is equipped with a quick tool change system that allows the operator to swap clamp jaws for different pile profiles – U‑type sheet piles, Z‑type, H‑pile, or round pipe – in under two minutes without special tools. As a quick tool change system Manufacturers China, we supply hardened, precision‑machined jaw inserts that lock securely with a spring‑loaded pin mechanism. This reduces downtime significantly on multi‑pile‑type jobs such as combined retaining walls or foundation reinforcement. No welding, no bolting – just simple, fast changes.

The full slewing mechanism assembly integrates a planetary gear drive and a high‑torque hydraulic motor, allowing continuous 360° rotation. This full slewing mechanism assembly is manufactured by Manufacturers China with sealed, grease‑packed bearings that perform reliably in dusty or muddy conditions. Combined with the ±30° side tilt, the SV200 can align piles to within centimetres of a target – essential for interlocking sheet piles or installing piles adjacent to existing foundations. Operators in Russia’s permafrost zones and Indonesia’s soft soil sites benefit from the smooth, responsive slewing control.

Unlike impact hammers, the SV200 uses hydraulic vibratory force. Its low noise eco friendly operation results from a balanced eccentric system and sound‑damped housing. At full frequency (2300–3000 rpm), typical noise levels remain below 82 dBA at 7 meters – low enough for night work in residential zones or near hospitals. This low noise eco friendly operation also reduces vibration transmission to adjacent buildings, making the SV200 ideal for urban infrastructure projects in Bangkok, Mumbai, or Moscow where environmental regulations are strict.

The SV200 is a true Custom Hydraulic pile driver – its flow and pressure curves are matched to the auxiliary hydraulic system of common 20–25 ton excavators. Operating at 32 MPa and requiring 170–230 L/min, the SV200 uses a direct‑drive design with no external power pack. We can further tailor the valve block, hose routing, and cooling capacity to your specific excavator make and model (except certain premium brands). This customization ensures maximum efficiency and lower fuel consumption per pile driven.
