Quick Tool Change System & Dual Pump Flow Merging System – SV-400 Side Grip Pile Driver Made In China

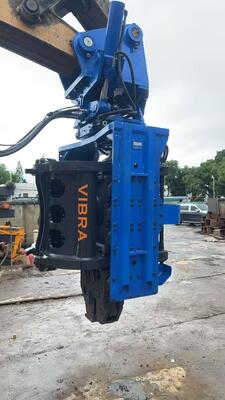

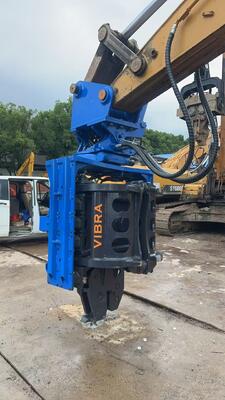

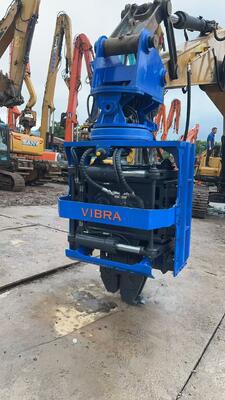

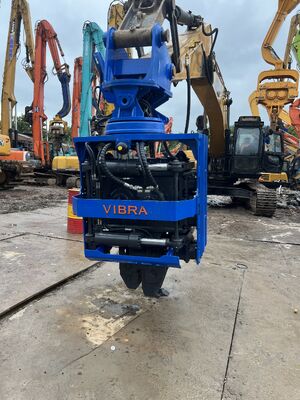

The SV-400 Side Grip Pile Driver represents the ultimate solution for converting 32–40 ton excavators into professional-grade piling rigs. As a specialized form of hydraulic vibratory hammer, the side grip pile driver is one of the most effective solutions for piling operations in low clearance and confined spaces. The SV-400 delivers an impressive 656 kN centrifugal force with a substantial 6.6 kg·m eccentric moment, enabling complete piling cycles—clamping, positioning, driving, and extraction—without the need for cranes or auxiliary equipment.

Engineered specifically for factory extensions, bridge underpasses, tunnel extensions, and urban infrastructure projects, the SV-400 features bidirectional side tilt (±30°) and 360° continuous rotation. The side grip design allows operation in extremely low vertical clearance because the clamp grips the pile from the side, unlike bottom-clamp-only designs. With a side clamp force of 465 kN and bottom clamp force of 520 kN, the SV-400 handles the most demanding piling applications with exceptional stability and precision.

The SV-400 delivers exceptional high frequency vibration output with a frequency range of 2,300–5,000 rpm, providing rapid, powerful blows that significantly reduce driving time. This high frequency vibration output is achieved through precision-engineered eccentric shafts, high-quality hydraulic motors, and premium bearing components. The broad frequency range allows operators to match vibration output to specific ground conditions—lower frequencies for soft soils and higher frequencies for dense gravel, compacted fill, and stiff clay.

The high frequency vibration output translates directly to superior penetration capability across challenging geological conditions commonly encountered across Southeast Asia, India, and Russia. Whether driving steel sheet piles, H-beams, or circular pipe piles, the SV-400's high-frequency vibration ensures efficient pile penetration with minimal pile damage. Contractors working on port construction, flood protection systems, and bridge foundations will appreciate the productivity gains from this powerful vibration output.

The SV-400 incorporates an intelligent dual pump flow merging system that enables two-stage hydraulic power management. In normal mode, a single pump circuit provides sufficient flow for light piling or extraction, saving fuel and reducing heat generation. When the pile encounters challenging ground conditions—dense gravel, compacted fill, or stiff clay—the system automatically merges the flow from a second pump, instantly increasing hydraulic power to the vibratory motor.

The dual pump flow merging system ensures the SV-400 receives full hydraulic power (up to 360 L/min) even when the host excavator's auxiliary flow is below the required level. Many 32–40 ton excavators have auxiliary flow limitations that would otherwise restrict performance. The dual pump flow merging system combines two separate pump circuits into one high-flow stream, providing a critical advantage for fleet owners who want to maximize existing equipment without upgrading to larger machines.

The merging process is smooth and shock-free, protecting both the hammer and the excavator. For operators working in mixed soil layers—common in river deltas, alluvial plains, and glacial till regions—this feature significantly improves productivity. The dual pump flow merging system ensures consistent, reliable power delivery across all operating conditions.

The SV-400 features a quick tool change system that allows operators to swap clamp jaws in under 10 minutes—no crane, no special tools required. One SV-400 can handle U-type sheet piles, Z-type sheet piles, H-beams (up to 400 mm flange), and circular pipes (up to 900 mm diameter) on the same day. This flexibility reduces equipment costs and keeps projects moving.

The replaceable standard clamp seat interface enables quick adaptation to different pile types. The quick tool change system minimizes downtime and maximizes utilization. From the cab, the operator can seamlessly switch between clamping, driving, and extraction—no helper equipment needed. This one-machine, one-operator approach is a game-changer for contractors in Southeast Asia, India, and Russia, where labor costs and equipment logistics are significant considerations.

The SV-400 incorporates a low maintenance cost design that minimizes total cost of ownership—a critical advantage for contractors in price-sensitive markets. Key engineering choices include:

Reinforced Box-Style Housing: Resists torsional stress during tough piling operations, ensuring structural integrity and longevity.

Hardened Steel Clamp Jaws: Extended service life even in abrasive soils, reducing replacement frequency.

Centralized Grease Points: All lubrication points are grouped for quick, efficient servicing, reducing maintenance time.

Integrated Control Valve Assembly: Eliminates dozens of hose connections and potential leak points, simplifying diagnostics and reducing hydraulic failures.

Premium Bearing Components: High-quality bearings ensure consistent performance and extended service intervals.

The low maintenance cost design reduces annual spare parts costs and downtime. For fleet operators in India, Russia, and Southeast Asia, this translates directly to higher profitability and more reliable project scheduling.

As a product of leading Side Grip Pile Driver Suppliers China, the SV-400 is manufactured to international quality standards. The side grip design is a breakthrough in confined space piling technology, specifically engineered for low-clearance working environments.

• ISO 9001:2015 Certified Manufacturing: Ensuring consistent quality and reliability.

• Comprehensive After-Sales Support: Spare parts availability and technical assistance.

• Customized Solutions: Marine and offshore applications with appropriate anti-corrosion treatment.

• Factory-Direct Pricing: Reduced capital expenditure and logistics costs.

Side Grip Pile Driver Suppliers China provide equipment that attaches directly to 32–40 ton excavators, using the excavator's hydraulic system without the need for external power packs. This simplifies deployment and reduces capital expenditure.

Southeast Asia: The SV-400's low maintenance cost design and robust cooling system ensure reliable performance in hot, humid tropical climates. The high frequency vibration output adapts to varied soil conditions from soft alluvial soils to stiff clay. Applications include port construction, flood protection, and urban infrastructure projects.

India: With India's rapid infrastructure development spanning highways, bridges, and high-rise buildings, the SV-400 delivers the power and reliability needed for demanding projects. The quick tool change system allows rapid adaptation to different pile types—critical for contractors managing multiple project types. The dual pump flow merging system ensures optimal performance even with standard excavator hydraulic systems.

Russia: Built with premium components and a robust design, the SV-400 withstands Russia's extreme climate conditions—from Siberian cold to summer heat. The durable construction and low maintenance cost design ensure reliable performance even in remote job sites. The high frequency vibration output delivers exceptional penetration through frozen ground and permafrost conditions.

1. Q1: What is a side grip pile driver and how does it benefit low clearance projects?

   A: A side grip pile driver is a specialized form of hydraulic vibratory hammer that uses side clamping instead of bottom-only clamping. The side grip design allows operation in extremely low vertical clearance because the clamp grips the pile from the side. With bidirectional side tilt and 360° rotation, the SV-400 can position piles precisely without moving the excavator.

2. Q2: How does the dual pump flow merging system benefit my operation?

   A: The dual pump flow merging system combines two separate pump circuits into one high-flow stream, ensuring the SV-400 receives full hydraulic power (up to 360 L/min). This is a critical advantage for fleet owners who want to maximize existing equipment without upgrading to larger machines. In normal mode, a single pump saves fuel; in boost mode, both pumps merge for maximum power.

3. Q3: What pile types can the SV-400 handle with the quick tool change system?

   A: The quick tool change system allows one SV-400 to handle U-type sheet piles, Z-type sheet piles, H-beams (up to 400 mm flange), and circular pipes (up to 900 mm diameter). Clamp jaws can be swapped in under 10 minutes without crane or special tools.

4. Q4: How does the low maintenance cost design reduce total cost of ownership?

   A: The low maintenance cost design includes reinforced box-style housing, hardened steel clamp jaws, centralized grease points, integrated control valve assembly, and premium bearing components. These features reduce annual spare parts costs and downtime. The integrated design minimizes leak points and simplifies diagnostics.

5. Q5: Is the SV-400 suitable for urban construction projects with strict regulations?

   A: Yes. The combination of balanced eccentric shafts, vibration-damped mounting brackets, and the integrated control valve's soft-start function keeps external noise below acceptable levels. The high frequency vibration output ensures smooth, consistent power delivery that minimizes lateral ground vibration—making it safer for piling adjacent to existing structures.

6. Q6: What excavator size is required for the SV-400?

   A: The SV-400 is compatible with 32–40 ton standard excavators. It attaches directly to the excavator arm and uses the excavator's hydraulic system—no external power pack required. The system operates at 32 MPa and requires 280–360 L/min of hydraulic flow.

7. Q7: How does the SV-400 perform in extreme weather conditions?

   A: The robust construction and premium components ensure reliable performance across diverse climates—from tropical heat in Southeast Asia to cold Russian winters. The low maintenance cost design ensures minimal downtime even in remote job sites.

8. Q8: What after-sales support do Side Grip Pile Driver Suppliers China provide?

   A: Leading Side Grip Pile Driver Suppliers China provide comprehensive after-sales support including spare parts availability, technical assistance, and customized solutions for marine and offshore applications with appropriate anti-corrosion treatment. Factory-direct pricing reduces capital expenditure and logistics costs.
